There’s no single fix for every foundation problem, and the right solution depends on what’s happening beneath or around your home. Some repairs stabilize sinking foundations, while others reinforce walls or lift uneven concrete. Before recommending repairs, professionals consider the type of damage and the conditions affecting the foundation. Here, we explain five residential foundation repair methods and the types of problems they address.
Common Foundation Problems That Require Repair
Your home’s foundation relies on the soil beneath it for steady support. However, soil conditions can change as the ground expands, shrinks, or settles unevenly, placing stress on different parts of the structure. Over time, that movement may affect walls, floors, and other areas of your home.
Foundation problems don’t always develop at the same pace or in the same way. One section of the house may begin to sink while another stays in place, creating uneven settlement. In other cases, pressure from surrounding soil can push foundation walls inward, causing them to bow or lean.
Here are some common warning signs that your home’s foundation needs repair:
- cracks in foundation walls or exterior masonry
- uneven or sloping floors
- doors and windows that stick
- bowing or leaning foundation walls
- gaps around doors, windows, or trim
1. Steel-Driven Piers
Steel-driven piers, also known as push piers, are another option for homes experiencing foundation settlement. Instead of being screwed in, these steel supports are hydraulically driven down to reach deeper, more reliable supporting layers. Once installed, they transfer the foundation’s weight away from soil that may shift or compress near the surface.
To install the system, a contractor attaches a steel bracket to the foundation and uses hydraulic equipment to push individual pier sections into the ground. The home’s weight provides the resistance needed to advance the piers. After the supports reach the required depth and capacity, the contractor can transfer the structural load onto them and, when conditions allow, lift settled portions of the foundation.

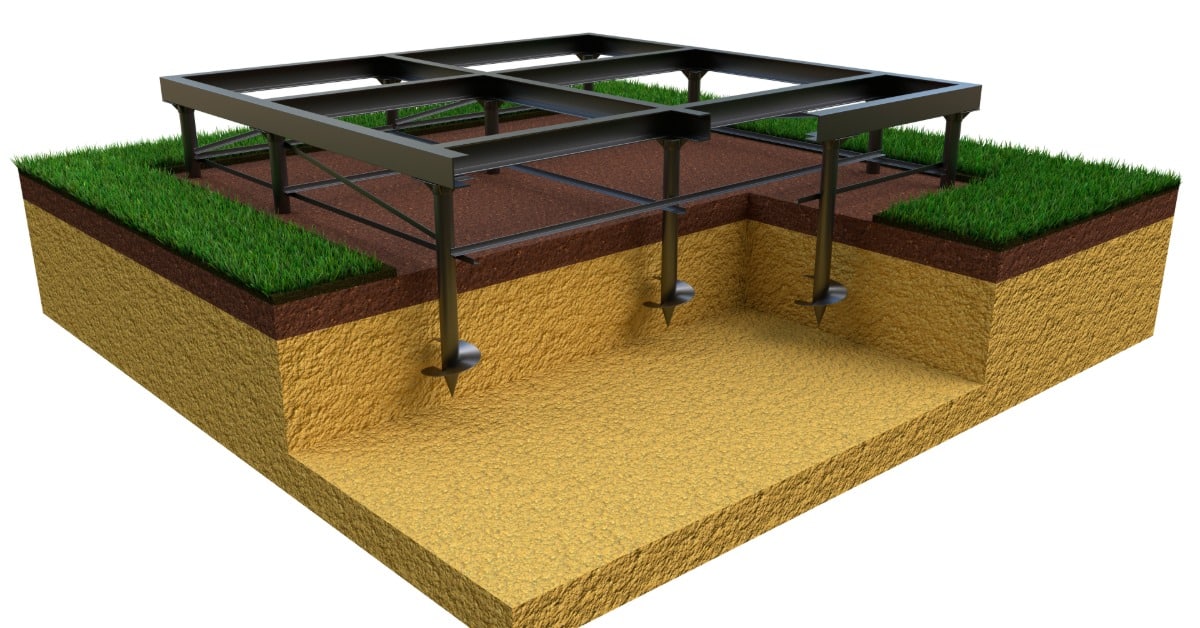

2. Helical Piers
Helical piers are steel supports with screw-like plates that anchor a foundation to deeper, more stable soil. During installation, specialized equipment rotates each pier into the ground until it reaches a depth where it can support the required structural load. The piers are then connected to the foundation with brackets that transfer the home’s weight to the supporting soil below.
This method is often used when near-surface soil can no longer support the foundation evenly. By transferring the load to deeper layers, helical piers reduce the foundation’s reliance on unstable ground. In some situations, they can also lift sections of a foundation that have already settled. As the piers are installed, contractors monitor resistance to make sure they reach the level of support required for the repair. Once connected to the foundation, the piers provide stable support and help prevent further settlement.
Steel-Driven Piers vs. Helical Piers
Both systems provide deep foundation support, but they differ in how they’re installed. Helical piers rotate into the soil, while steel-driven piers are pushed down using hydraulic force and the structure’s weight. This makes the home’s existing condition and structural load important factors when choosing between them. Both options are suitable for San Francisco residential foundation repair. However, the right option will also depend on the site’s soil conditions and the type of settlement affecting the property.
3. Wall Tiebacks
The soil surrounding a foundation wall can exert considerable sideways pressure, particularly as moisture levels and ground conditions change. If that pressure becomes too great, the wall may gradually bow inward or develop horizontal cracks. Wall tiebacks are designed to stabilize these walls by anchoring them to more secure material beyond the affected area.
A typical system uses steel rods or tendons that extend through the foundation wall and into the ground behind it. These components connect to anchors installed in soil or other material that can provide the necessary resistance. Once the system is properly secured and tensioned, it counteracts the pressure pushing against the wall.
When Wall Tiebacks May Be Necessary
You may first notice a problem when a basement wall develops a long horizontal crack or no longer appears straight. These changes can indicate that the surrounding soil is pushing harder than the wall can resist. Before recommending tiebacks, a foundation specialist will assess the wall’s condition, the extent of the movement, and the surrounding soil. Depending on the damage severity, repairs may focus on preventing further movement or include additional work to correct the wall’s position.
4. Carbon Fiber Crack Repair and Reinforcement
Carbon fiber reinforcement strengthens certain cracked or weakened foundation walls without requiring large steel beams or braces. A specialized structural adhesive bonds the material to the wall, creating a strong reinforcement system that resists further movement. Because carbon fiber is relatively thin, it adds support without taking up much interior space.
This method may suit walls with certain types of cracking or inward bowing, especially when the movement is less than one or two inches. Once installed, the reinforcement works with the existing wall to resist the forces acting against it.
Benefits of Carbon Fiber Reinforcement
Carbon fiber has high tensile strength, meaning it can resist significant pulling forces without breaking. When properly bonded to a suitable wall, it can strengthen areas affected by cracking or movement. Its slim profile also makes it practical for spaces where traditional bracing is difficult to accommodate.
5. Polyurethane Foam Lifting
A sunken walkway or uneven patio doesn’t always mean the concrete itself needs to be replaced. Sometimes, the supporting soil settles or shifts, leaving empty spaces beneath an otherwise sound slab. Polyurethane foam lifting addresses these gaps by injecting an expanding material beneath the concrete, raising and supporting it.
The process begins by drilling small holes through the affected surface. A contractor then injects polyurethane foam, which expands beneath the slab and gradually lifts it toward the intended elevation. Once the surface is properly positioned, the holes are patched, leaving much of the original concrete in place.
Where Polyurethane Foam Works Best
Polyurethane foam lifting is commonly used for residential concrete surfaces such as driveways, sidewalks, patios, and certain slabs. Since the existing concrete stays in place, the process can be less disruptive than removing and replacing an entire section. However, deeper foundation settlement may require a different repair method, such as helical or steel-driven piers.
Each explanation of different residential foundation repair methods shows why one may suit your home better than another. Helical and steel-driven piers can stabilize settling foundations, while wall tiebacks and carbon fiber reinforcement address certain types of wall movement. Polyurethane foam lifting offers another option when concrete surfaces are uneven but still suitable for lifting. If you’ve noticed cracks, shifting floors, or other changes around your property, a professional evaluation can determine the cause and identify which repairs make sense for your home.
